Data Sheet |
DMD70 (Unsaturated, F-class)
Properties and Application:

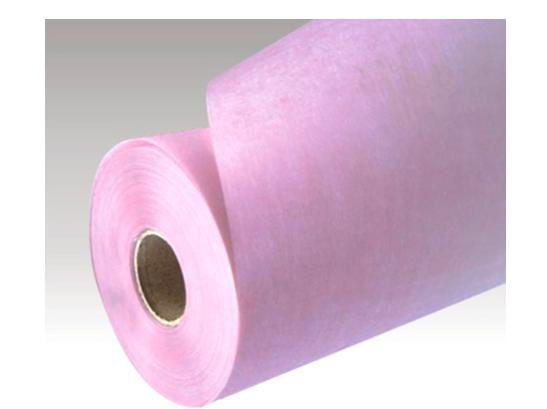

DMD 70 is made of two layers of electrical polyester non-woven and one layer of electrical grade polyester film, laminated
with a high temperature adhesive system, 70% filled with resin(unsaturated), with good dielectric properties, high heat
resistance and mechanical strength, suitable for small and medium size electric motors as slot, phase, turn-to-turn, liner
insulation in F-class Motor. The ¡°Flexible Type¡± is more flexible than ¡°Standard Type¡± in mechanical property but with lower
Breakdown Voltage than ¡°Standard Type¡±
¡¡
Main Specification:
1. Standard Type
Properties |
Values |
|||||||||
Nominal Thickness (mm) Structure (mil) |
0.15 222 |
0.18 232 |
0.20 242 |
0.23 252 |
0.25 262 |
0.30 27H2 |
0.35 2102 |
0.40 2122 |
||
PET Film Thickness(mm) |
0.05 |
0.075 |
0.10 |
0.125 |
0.15 |
0.19 |
0.25 |
0.30 |
||
Thickness Tolerance(+/-)(mm) |
0.020 |
0.020 |
0.020 |
0.020 |
0.020 |
0.030 |
0.040 |
0.040 |
||
Specific Weight (g/m2) * |
160 |
190 |
230 |
260 |
300 |
360 |
450 |
510 |
||
Tensile Strength (N/cm)¡Ý |
MD |
unfold |
80 |
100 |
120 |
130 |
150 |
170 |
200 |
300 |
fold |
80 |
90 |
105 |
115 |
130 |
150 |
180 |
220 |
||
TD |
unfold |
80 |
90 |
105 |
115 |
130 |
150 |
180 |
220 |
|
fold |
70 |
80 |
95 |
100 |
120 |
130 |
160 |
200 |
||
Elongation(%)¡Ý |
MD |
¡Ý 10 |
¡Ý 5 |
|||||||
TD |
¡Ý 15 |
¡Ý 5 |
||||||||
6 |
7 |
9 |
10 |
12 |
15 |
18 |
20 |
|||
Bonding Strength at room temp. |
No delamination |
|||||||||
Bonding Strength at 180¡À2c 10min |
No delamination, No blister, No adhesive flow |
|||||||||
Bonding Strength at wateriness |
No delamination |
*Above values are only for customers¡¯ reference, exact testing value is available.
2. Flexible Type
Properties |
Values |
|||||||||
Nominal Thickness (mm) |
0.15 |
0.18 |
0.20 |
0.23 |
0.25 |
0.30 |
0.35 |
0.40 |
||
Thickness Tolerance (+/-) (mm) |
0.020 |
0.020 |
0.020 |
0.020 |
0.020 |
0.030 |
0.040 |
0.040 |
||
Specific Weight (g/m2) |
150 ¡À22 |
190 ¡À28 |
210 ¡À32 |
240 ¡À36 |
260 ¡À39 |
310 ¡À46 |
390 ¡À58 |
440 ¡À66 |
||
Tensile Strength (N/cm)¡Ý |
MD |
unfold |
80 |
100 |
120 |
130 |
150 |
170 |
200 |
300 |
fold |
80 |
90 |
105 |
115 |
130 |
150 |
180 |
220 |
||
TD |
unfold |
80 |
90 |
105 |
115 |
130 |
150 |
180 |
220 |
|
fold |
70 |
80 |
95 |
100 |
120 |
130 |
160 |
200 |
||
Elongation(%)¡Ý |
MD |
¡Ý 10 |
¡Ý 5 |
|||||||
TD |
¡Ý 15 |
¡Ý 5 |
||||||||
Breakdown strength (KV) ¡Ý |
6 |
7 |
9 |
10 |
11 |
12 |
13 |
16 |
||
Bonding Strength at room temp. |
No delamination |
|||||||||
Bonding Strength at 180¡À2c 10min |
No delamination, No blister, No adhesive flow |
|||||||||
Bonding Strength at wateriness |
No delamination |
Product supply:
1, Standard Width: 990mm
2, Packing: 50 Kg/Roll, In Carton and Pallet
3. MOQ: 1,000 Kg in a lot, and 500 Kg each size..
4. Color available: White, Pink, Blue, Green, etc.
Note:
1. Above values are the accumulative typical ones by recognized
testing method, but, in order to ensure you to select our products
properly, please refer to above specification and test the samples
based on your using purpose or feel free to contact our engineers
for further and better understanding.
2. The color is only confirmed by samples.
Product supply:
1, Width: 907~914 mm
2, Packing: 50 Kg/Roll, In Carton and Pallet
3. MOQ: 1,000 Kg in a lot, and 500 Kg each size..
