Data Sheet
|
|
|
|
Data Sheet |
|

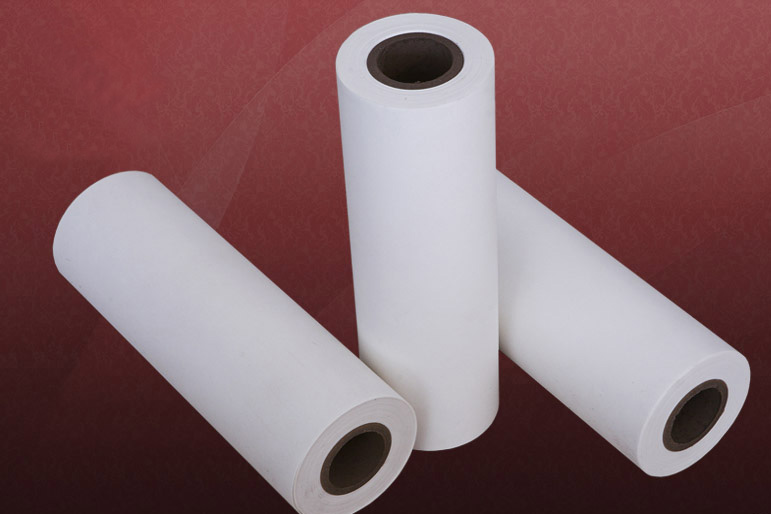

Electrical Polyester Non-woven ST7032
Properties and Application:
ST7032 polyester non-woven fleece is made of polyester fiber and Aramid fiber by processing under
pressure and heat, which can be used in the higher temperature application than ST7031 because of
Aramid fiber. Widely used as the filter for liquid or gas.
Main Specification:
|
Properties |
Unit |
Value |
|||
|
Nominal Thickness |
mm |
0.05 |
0.075 |
||
|
Thickness tolerance |
Average |
±10% |
|||
|
individual |
±15% |
||||
|
weight* |
g/m2 |
27 |
40 |
||
|
Weight variant rate(CV) |
% |
5% |
|||
|
Composition |
--- |
Polyester+ Aramid fiber |
|||
|
Tensile strength |
MD |
N/50mm |
≥60 |
≥100 |
|
|
TD |
≥18 |
≥25 |
|||
|
Elongation |
MD |
% |
≥ 2 |
||
|
TD |
≥ 5 |
||||
|
Temp Index |
Cº |
180 |
|||
*Above values are only for customers’ reference, exact testing value is available.
Product supply:
1. Normal Width: 1000mm, 2040mm, slitting width is available
upon your request.
2. Packing: 100-150 Kg/Roll
3. Package: In suffocating-free Pallet for exportation
4. MOQ: 1000kgs in a lot.
Note:
1.Above values are the accumulative typical ones by recognized testing method, but, in order to ensure you
to select our products properly, please refer to above specification and test the samples based on your using
purpose or feel free to contact our engineers for further and better understanding.
2. The color is only confirmed by samples.
