Properties and Application:

Prepreg DMD is made by the process of pre-curing the modified F-class DMD with Impregnation of Hi-temp resistant

B-stage Epoxy resin by baking, with long shelf life at room temp, low pre-curing temp & time, excellent electrical insulation,

bonding and heat-resistant properties. Its thermal Glass is F, widely used for liner insulation of copper foil (aluminum foil)-

wrappedLow voltage coils in dry-type transformer and slot insulation & phase insulation in B~F class Motor & electrical

appliances.



Main Specification:

  Properties

  Unit

Values

Nominal thickness

mm

0.18

0.20

0.23

0.25

0.37

THK Tolerance

mm

¡À0.03

¡À0.035

¡À0.04

Tensile strength MD No bending

N/10mm

¡Ý70

¡Ý80

¡Ý100

¡Ý120

Soluble Resin content

g/m2

45¡À15

Volatile Content

%

¡Ü1.5

Dielectric Strength

MV/m

¡Ý40

Shear Strength

MPa

¡Ý3.0

Appearance

Neat and smooth surface, No obvious non-uniform resin, No inclusions against quality, No surface damage at unreeling. No bubbles, folding damage etc.

 Product Supply:

1. Max Width: 1500mm, slitting width is available upon request, width tolerance:¡À1.0mm

2. Packing: 20~60 Kgs/Roll, in Carton and Pallet

3. MOQ: 1,000 Kg in a lot, and 500 Kg each size..

4. Shelf life: 6 months at 25c from the date of delivery. Over the period, it can be still be used if the re-testing is in

agree with the technical requirements. The rolls should stand up, far from heat sources, fire and sunshine

¡¡

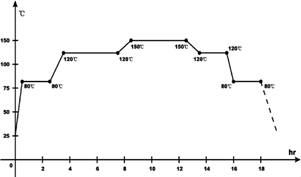

Application Advice:

¡¡

¡¡

¡¡



Temp(¡æ)

Room Temp~80

80 ~120

120~150

150 ~120

120 ~80

Heating time(h)

0.5

0.5-1

0.5-1

1

0.15

Baking time(h£©

1~2

2~4

4

1~2

2



¡¡

¡¡

¡¡

¡¡

¡¡

Note:

1. Above values are the accumulative typical ones by recognized testing method, but, in order to ensure you to

select our products properly, please refer to above specification and test the samples based on your using purpose

or feel free to contact our engineers for further and better understanding.

2. The color is confirmed by samples.



¡¡
